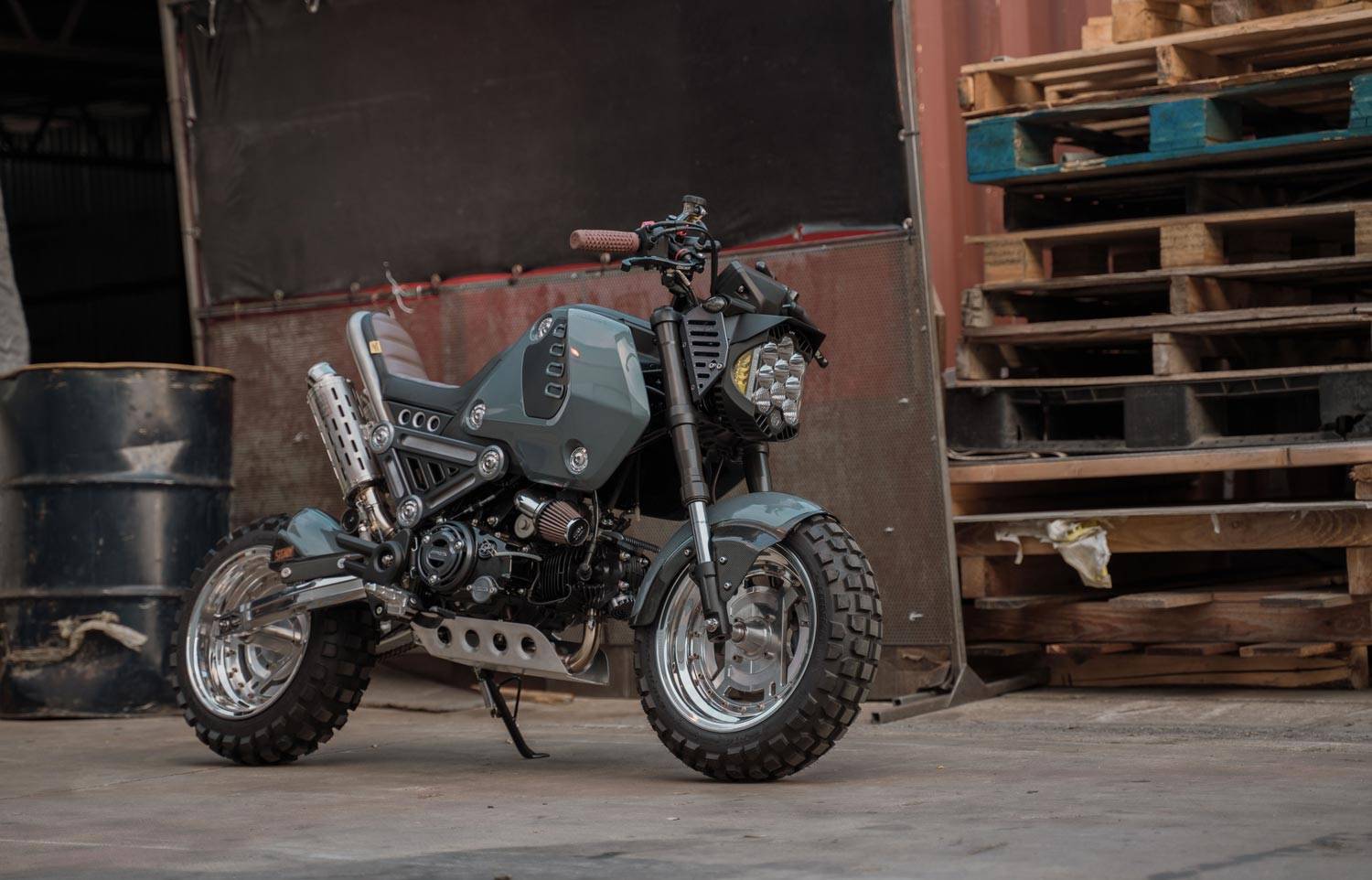

Of the two custom Groms we unveiled at 2021 Barber Small Bore, “Groundead” by far was the more challenging and ambitious build. If the “Type 56” was designed with the track in mind, “Groundead” looks like it could be from another planet. Pulling from childhood inspirations such as the world of Syd Mead and the dystopian, post-apocalyptic surroundings in Katsuhiro Otomo’s 1988 film AKIRA, Steady Design’s concept for “Groundead” was to turn the Grom into a “Sci-Fi, all-terrain explorer”. Something different but strangely familiar at the same time.
With this being an all new Grom for 2022, the aftermarket scene in the U.S. was essentially nonexistent. Therefore all of the custom parts needed to be conceptualized, outlined, modeled, tested and manufactured within a short timeframe. The process involved constant back and forth between Steady Design and the team at Chimera Engineering, resulting in a lot of spur of the moment trouble shooting and problem solving.
OUT OF THIS WORLD

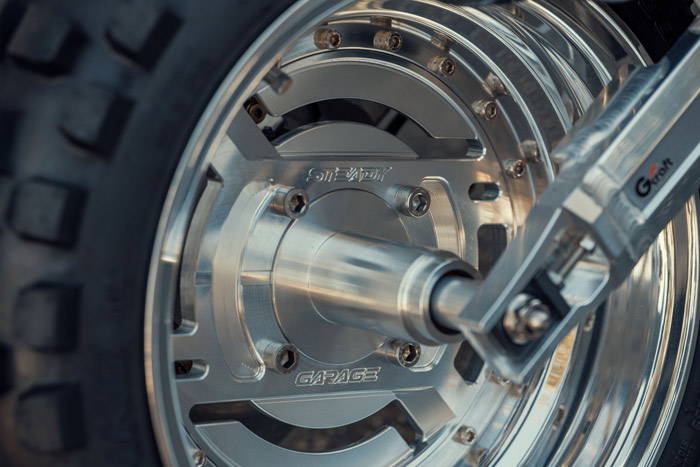

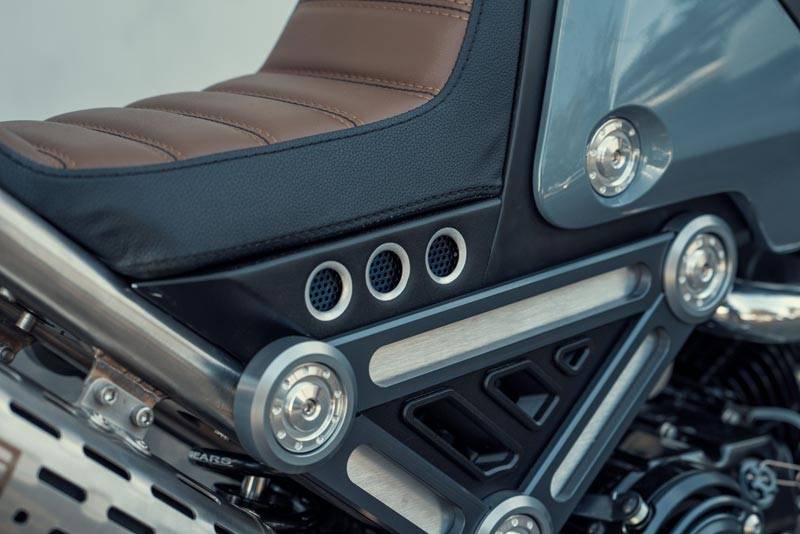

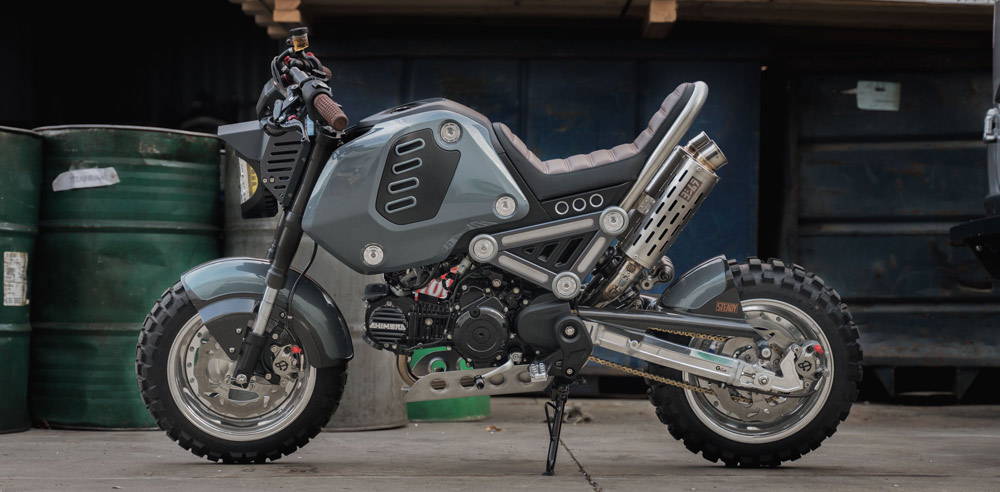

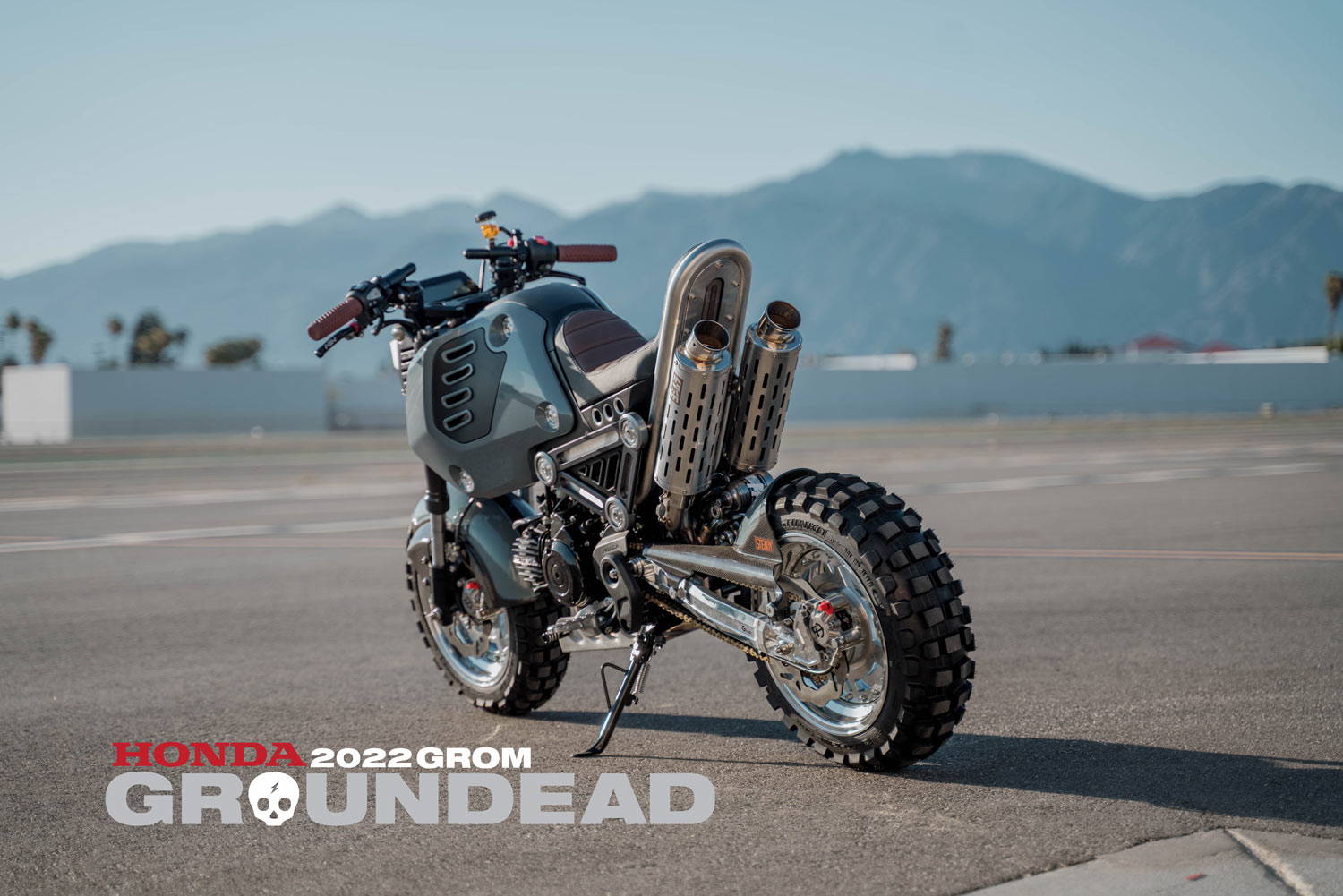

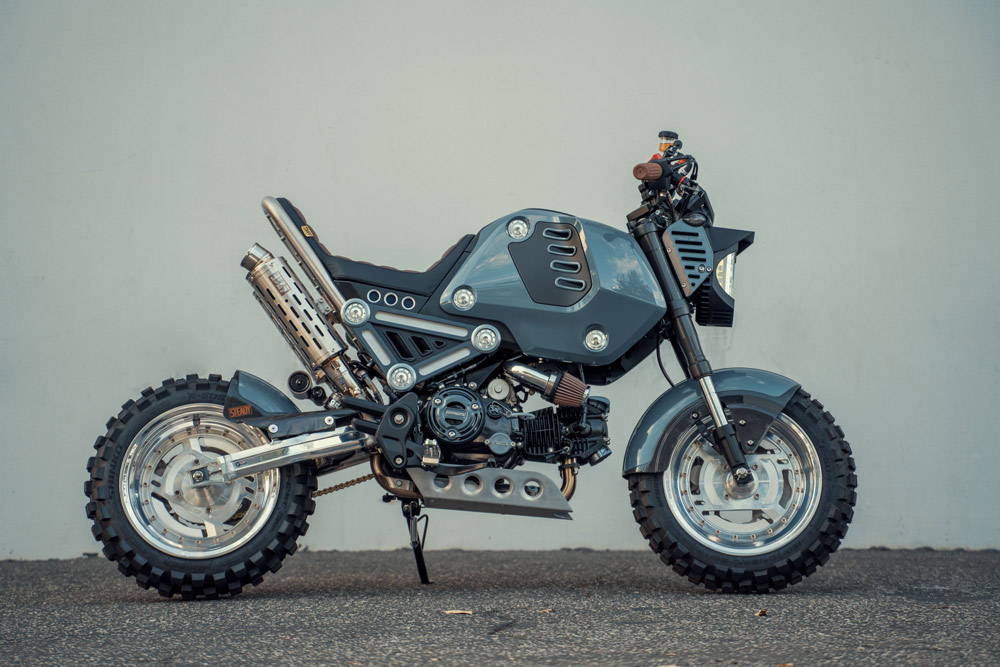

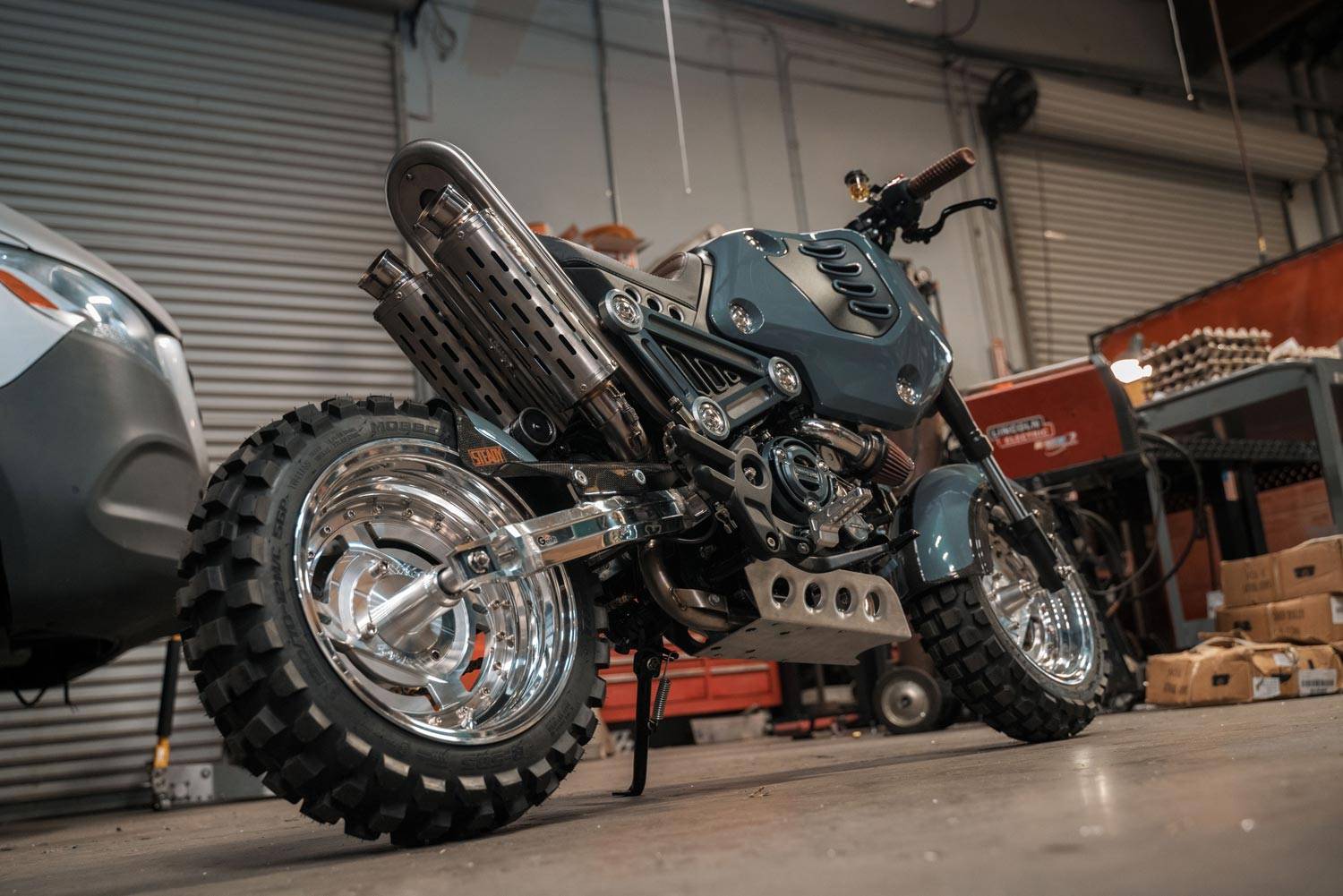

In order to give the bike a bare metal, ‘motor on wheels’ feel, we first had to remove the Grom’s rear subframe and replaced it with a high angle rear tail, which is one of the key advantages over the previous Grom generations, the ability to “unbolt” the rear subframe. The additional clearance, signifying its true purpose being off-road, gave way for the dual GP Magnum Mufflers that were customized by our friends at Yoshimura-RD. There are numerous sci-fi inspired details throughout such as the air ducts on the body panels and the three dimple holes directly under the seat, revealing a metal mesh underneath. The custom 12” FKD 1’s, further heighten this design sensibility, truly giving “Groundead” an other-worldly feel.
• Custom dual Yoshimura Magnum GP Mufflers with custom Steady Garage SS Header

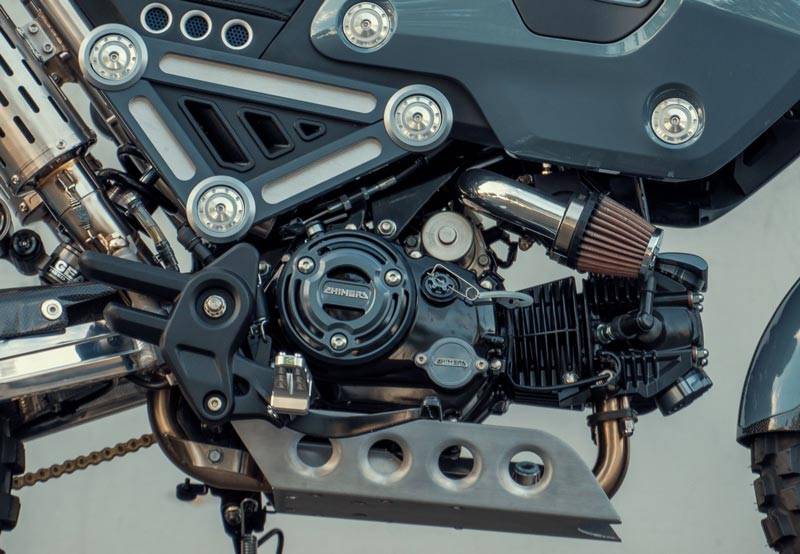

• Chimera Engineering One-Off Flyers Upper Tappet Valve Cover*
• GCraft Handcrafted Triple Square Tubing Aluminum Swing Arm
• Anchor Brake ANC6 Brake Calipers
• Anchor Brake ANB13 Master Cylinders
• Chimera Engineering Left Side Brake Caliper Bracket
• Chimera Engineering One-Off Triangle Side Panel*
• Chimera Engineering Moffit Pegs*

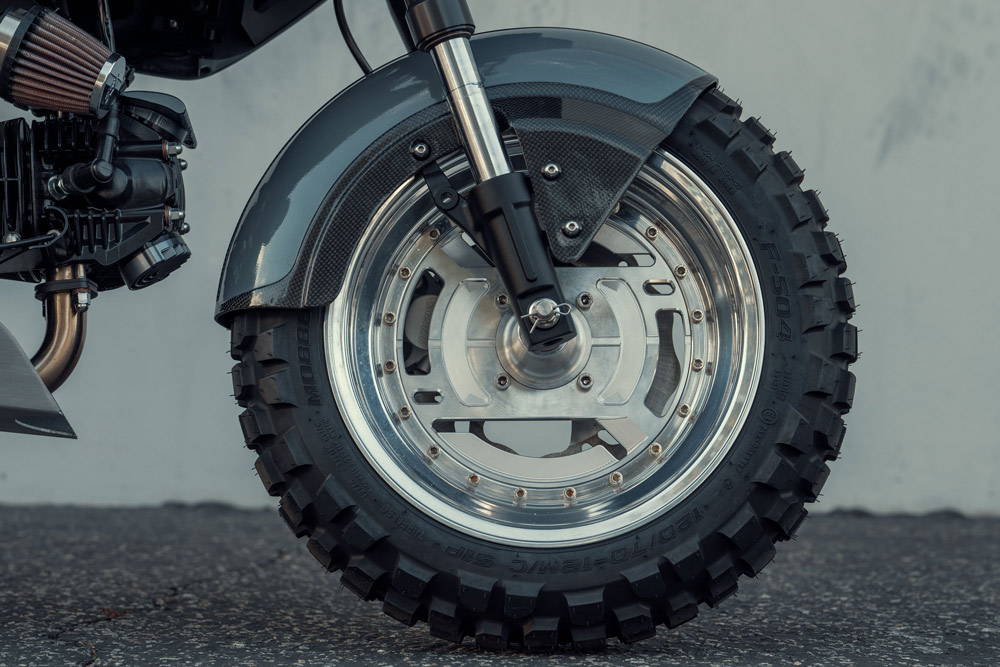

• Detailed By Panem x RAU Engineering Front and Rear Fender
• Custom Aluminum Skidplate
• Custom Aluminum Seat Pan
• Custom Stainless Steel High Tail Rear Subframe Hoop

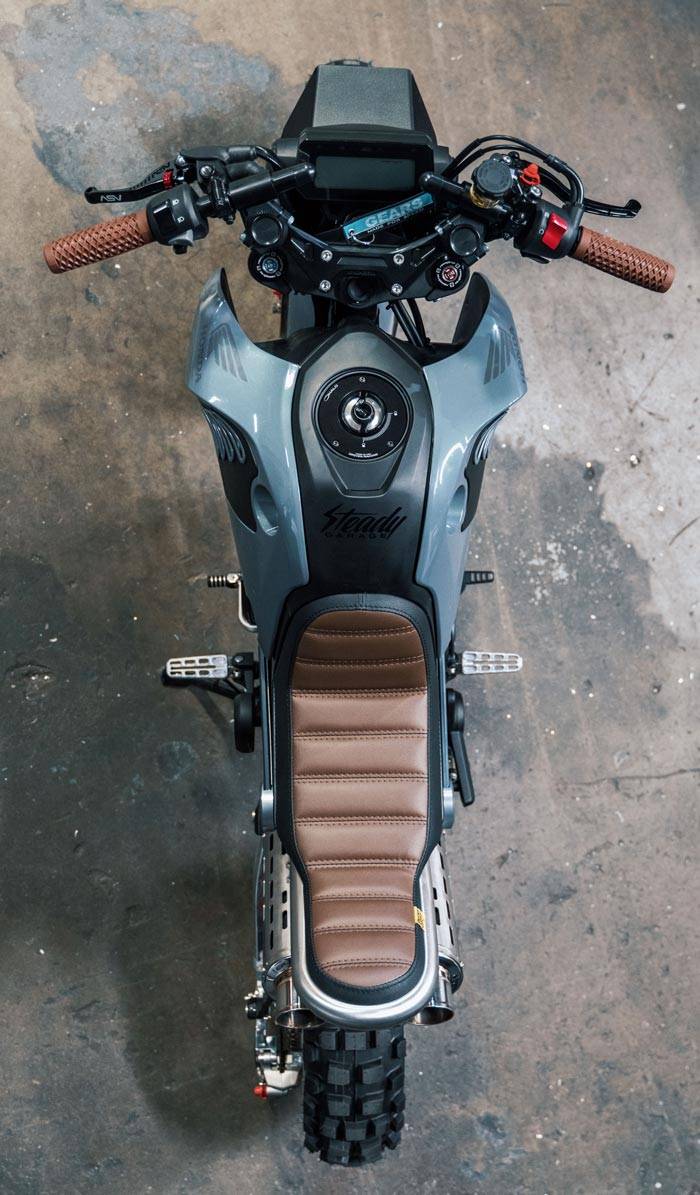

• Rogelio’s Auto Upholstery Custom Seat

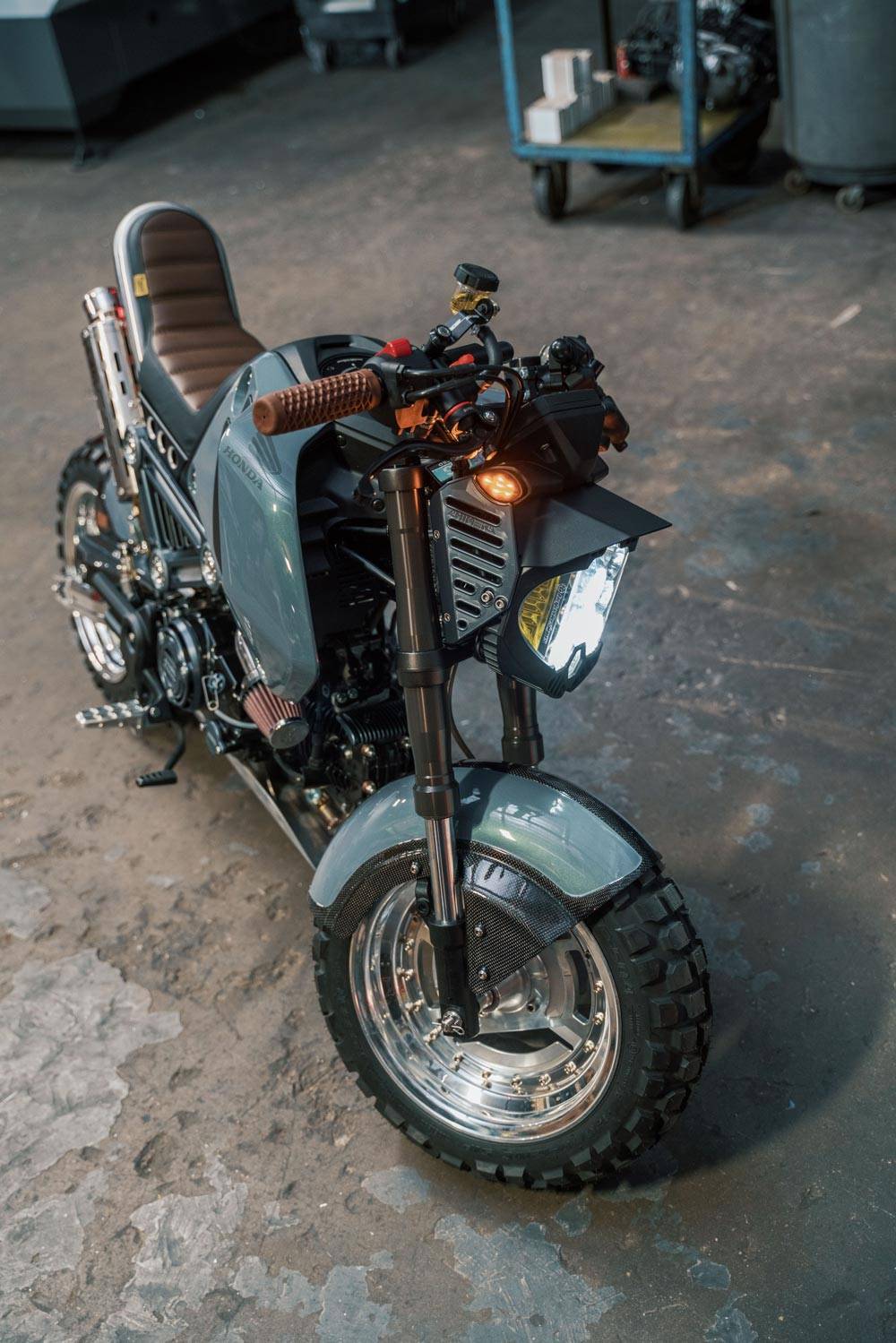

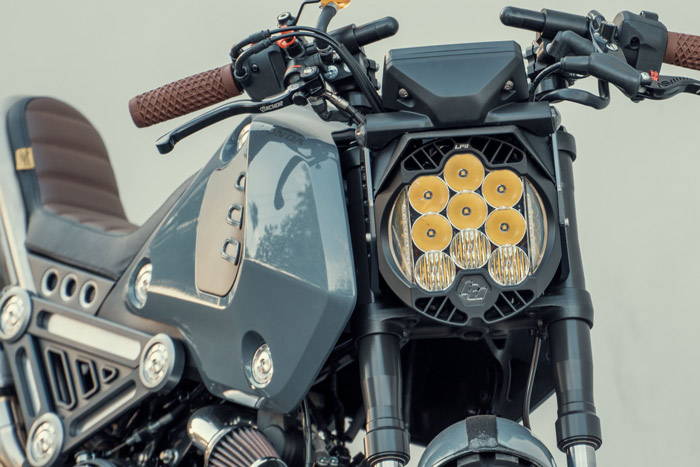

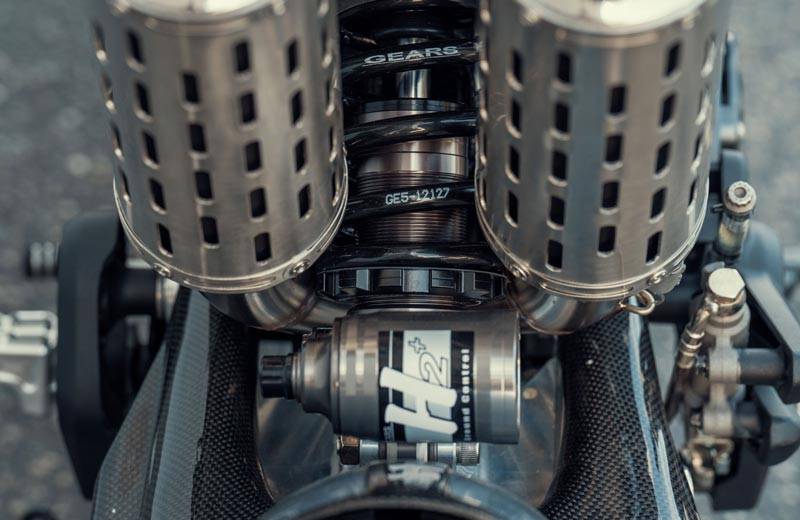

For the suspension we went with a Racing Bros Adjustable Front Fork Kit & Front Fork Lowering Kit and a Gears Racing Hill-2 Plus Rear Shock. Anchor ANC6 Brake Calipers + ANB13 Mastercylinder. We also included a G-Craft: Triple Square Handcrafted Aluminum Swing Arm, Yoshimura: GP Magnum Mufflers that were customized by Yoshimura and Baja Designs: LP9 Pro LED headlight. Lastly we wrapped the FKD 1’s with a pair of Shinko Mobber Tires.
We’d also like to highlight Rogellio’s Upholstery x RAU Engineering for their custom seat upholstery and 3D scanning and Detailed by Panem’s carbon fiber work on the redesigned front and rear fenders.
Rogelio's Auto Upholstery, Gcraft, ARacer, Anchor Brake Systems, Chimera Engineering, Brake Tech, Gears Suspension, Yoshimura, Shinko Tires, Honda Powersports, Panem Carbon Fiber, Baja Lights.
