  • SKU: CH-1249

Chimera Short Ram Air Intake System - Honda Grom 125 RR (2022+)

$104.99
Shipping calculated at checkout.
FOR CLOSED COURSE COMPETITION USE ONLY. NOT INTENDED FOR STREET USE. THE MANUFACTURE, SALE, OFFER FOR SALE, OR INSTALLATION OF THIS PRODUCT MAY ALSO BE ILLEGAL NATIONWIDE UNDER THE FEDERAL CLEAN AIR ACT (42 U.S.C. § 7522(A)(3))

*You are required to fill out this form with your Full Name, Make, Model, and Year of your Vehicle before adding to cart.*

By Filling out this form, I acknowledge that this product will not be used on the public roads or land.

DESCRIPTION
Chimera Engineering Short ram air intake system for 3rd generation 2022+ Honda Grom 125! Direct bolt-on intake system that will allow your Grom 125 / MSX 125 to breathe! Built-in air snorkel that will help increase airflow! Unlike other intake kits on the market, the Chimera Short Ram Intake retains the OEM IAT sensor so that'll get the most accurate reading. It also recirculates the crankcase breather. This intake design was a perfect fit! The space around the body panels and the frame are very tight, but Chimera got it done!

Chimera Short Ram Intake kit ONLY INCLUDES THE FOLLOWING ITEMS:

  • Chimera Short Ram Intake Pipe (2022+ Honda Grom 125 RR, JC92)
  • Chimera IAT Sensor Extension Harness
  • Chimera 3 Ply Silicone Intake Coupler
  • 2x Hose Clamp

OPTIONAL ITEMS *PLEASE SELECT FROM THE PRODUCT ADDON BOXED TO COMPLETE THE SYSTEM*:

  • Chimera CH-1307 Universal Cone Air Filter
  • K&N Universal RC-1060 Chrome Air Filter
  • Sprint Filter Universal Water Proof Air Filter

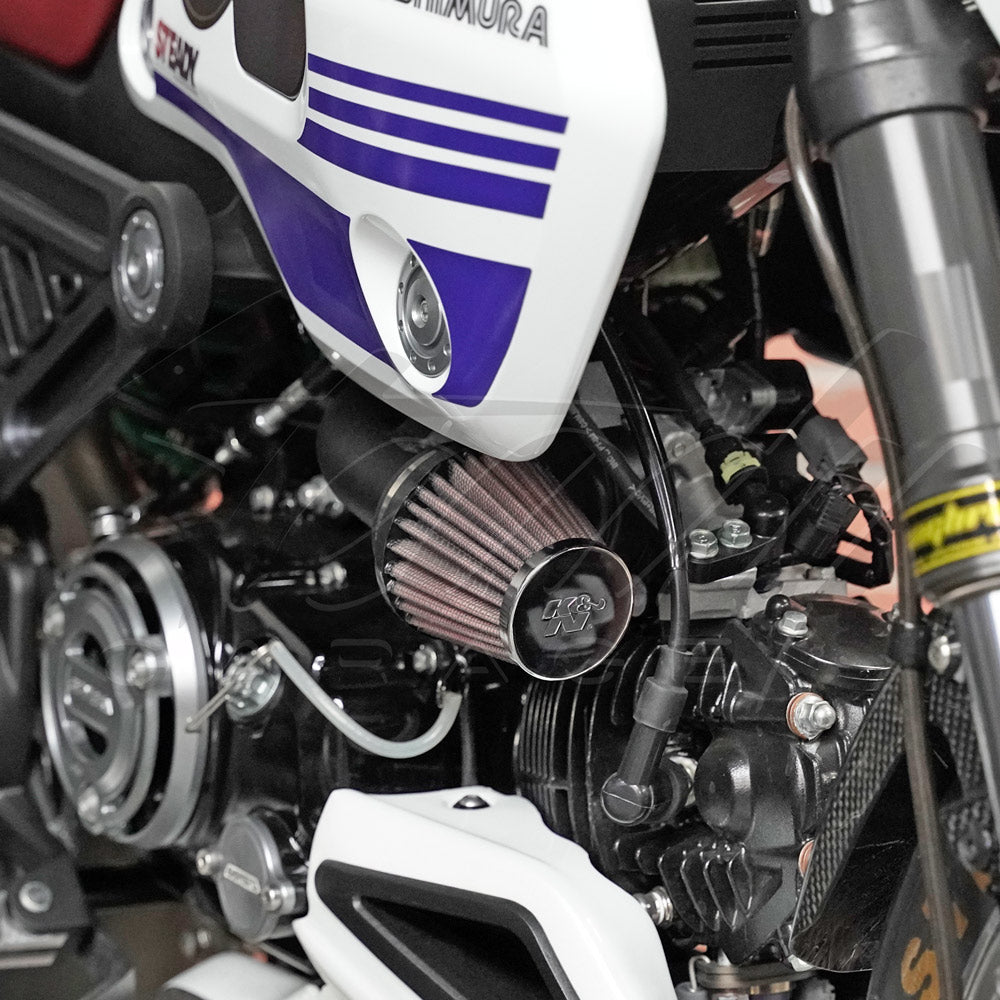

Chimera Engineering Short Ram Honda Grom 125 intake system will directly replace the entire factory air box without the need to modify anything! Chimera Short Ram intake is positioned to allow a more direct, cooler, and fresher air into your engine, giving you better throttle response and better performance. Increase airflow and at the same time, get a nice deep throaty intake sound while you ride around! When it comes down to race time, you have the option to remove the air filter and expose a velocity stack/air snorkel to increase airflow! Made from aluminum and powder-coated textured black for the final finish.

Chimera Engineering Short Ram Intake has been proven over and over again to increase HP without harming torque! This should the first thing to do on your Honda Grom!



See below in installation tips #7 to transfer the nut clips, this method would help stabilize the fairing. There is no fairing rod available at this time. The 2022 Grom fairings are very sturdy with the nut clips in position, however, if you're worried about the fairings moving, you can leave the stock airbox intact and just remove the OEM rubber tube.



Made in the USA! *PATENT PENDING*



OPTIONAL K&N Pre-charger (see drop-down menu): for those that want to keep their K&N air filters in tip-top condition! The K&N PreCharger is a specially designed filter wrap made to extend the service interval of your K&N Filter when used in very dusty conditions. They are made from durable polyester material containing uniform micron openings. The PreCharger will stop small dirt particles; yet add little restriction to the airflow of the filter. The PreCharger is designed to be run dry and can be cleaned with K&N Filter Cleaner.

Note:

When installing the short ram intake, make sure the battery is unplugged. Before plugging the battery back on, make sure the IAT sensor is connected, otherwise, a check engine light would appear if you forget to plug in the IAT sensor. Resetting the ECU is recommended to erase the existing parameter and refresh itself to the new change. Please refer to the service manual for ECU reset. Like any aftermarket air intake system for the automotive and power sports industry, not recommended to be used in rain.

Sprint Filter Waterproof Air Filter Option: Sprint air filter overall size is a lot larger than the K&N air filter. Since the Sprint Filter is taller than the K&N air filter, depending on your intake placement, you may need to adjust and position the intake to your preference.

INSTALLATION TIPS:

  1. Install the coupler onto the throttle body first with the hose clamps positioned to where it's easily accessible.
  2. Transfer the IAT sensor from the OEM airbox to the Chimera Short Ram Intake Tube
  3. Install the Chimera intake tube onto the throttle body coupler, check the breather hose length and cut the breather hose to length (leave a little extra length for adjustments if needed)
  4. Plug in the IAT sensor extension harness.
  5. Fit the air filter onto the Chimera intake tube.
  6. Adjust the position to your preference and then tighten everything up.
  7. CLICK HERE for instructions on transferring the nut clips for the fairing.

YOUTUBE INSTALLATION VIDEO BY EASTCOASTISH:

https://www.youtube.com/watch?v=lPM-fMJv24s
