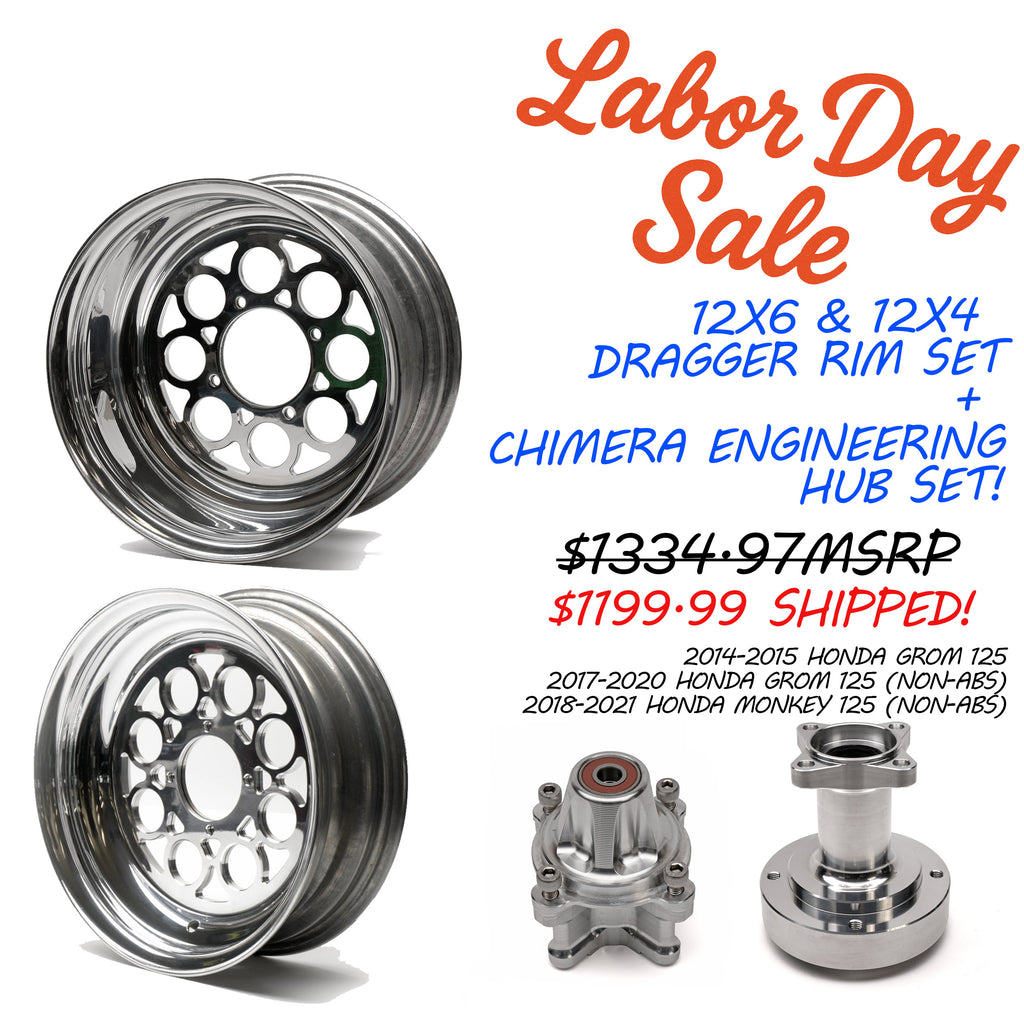

LABOR DAY SALE SPECIAL! Limited time, get 10% off of rim and hub package for Non-ABS Honda Grom 125 and Honda Monkey 125! Direct bolt on! The tire tires of your choice and start riding in style!

CONTENT:

• JHR Dragger 1PC rim 12x6
• JHR Dragger 1pc rim 12x4
• Chimera Engineering V2 Front Hub (4 Bolt)
• Chimera Engineering V1 Rear Hub (new design)

FITMENT:

• 2014-2015 Honda Grom 125
• 2017-2020 Honda Grom 125 (Non-ABS)
• 2018-2021 Honda Monkey 125 (NON-ABS)

JHR Dragger 12x6/12x4 Rim Set - NON-ABS Honda Grom (2014-2020), Monkey (2018-2021)

JHR Dragger 12x6 rear rim and 12x4 front rim package! Rear rim has a 4+2 offset, 4x110mm bolt pattern is perfect for Honda Grom 125, Monkey 125, and other custom scooters/Mini Motos! Machined from Douglas Wheel Technologies (DWT) solid dish blanks, deep chamfer on the face side and slight chamfer on the back side of the rims, which will give you a nice look on both sides!

NOTE: For 6" wide rear rim, the wheels will be offset to the right by 1". It does not affect riding alignment or handling. This applies for all billet hub set up running 6" wide rims.

Rear Rim Specs:

• Design: Dragger
• Diameter: 12"
• Width: 6"
• PCD Bolt Pattern: 4x110mm
• Finish: Raw aluminum with minor color blend polish from DWT (not mirror or show quality polish)

Front Rim Specs:

• Design: Dragger
• Diameter: 12"
• Width: 4"
• PCD Bolt Pattern: 4x91mm (4x90mm)
• Finish: Raw aluminum with minor color blend polish from DWT (not mirror or show quality polish)

SPUN ALUMINUM RIM NOTE:

Douglas Wheel Technologies (DWT) rims are made from spun aluminum, which is originally designed to be used with off-road vehicles, such as ATV and UTV. All Douglas rims have a slight wobble or run-out since they are designed for off-road vehicles that are used on the sands. It's industry standard for spun rims to have some run-outs or up and down movement. The llip edge may contain some slight blems or imperfections as DWT does not package the rims with enough protection during shipping, therefore it's DWT standard to have some blems/imperfections on the lip edge. DWT made their wheels with the intention of them being used hard in the dirt and sand. If you want high quality rims, please look into Chimera Engineering Wheels (CHW).

Chimera Engineering Rear Hub 4x110 - Honda Grom Monkey 125 (VERSION 1)

Chimera Engineering Rear Hub to run aftermarket rear rims on Honda Grom 125 and Monkey 125! New design hub that is 10% lighter!

Designed to be used with the OEM cush carrier!

VERSION 1

• 2014-2020 Honda Grom 125 (ABS/Non-ABS)
• 2018-2024 Honda Monkey 125 (ABS/Non-ABS)

Specs:

• CNC Machined from T-6061 Aluminum, Made in the USA!
• Uses the Cush Hub Carrier to get the OEM ride and to extend chain and sprocket life
• 4x110mm Bolt Pattern (M10x1.5mm thread holes)
• 89mm Center Hub Bore
• Nachi Bearings (Made in Japan)

Hub Content:

• Chimera Engineering Rear Hub Monkey/Grom

• Nachi Bearings already pressed in
• M10 x 1.50mm x 18mm Socket Head Cap Screws
• OEM Honda O-Ring

Note: If you're running a 6" wide rear rim on the Grom OR Monkey, the rear rim is actually off-center towards the right (throttle side) by approximately 1". This is due to the clearance of the chain, therefore anyone who runs a 6" wide rear rim would be off-center. This does not affect how the bike rides, but it could be an eye-sore on the Monkey and you'll notice it more due to the dual rear shock.

Chimera Engineering V2 Front Hub 4x90mm NON-ABS (4 BOLTS)

Chimera Engineering V2 Front hub is designed to be used with aftermarket hub less rims! The V2 has been completely redesigned! Further weight reduction of ~28%! Machine work has been increased significantly to further add details to the hub. This is the next generation of Chimera Engineering 4B front hubs for the Honda Grom/Monkey!

You could reuse the OEM stock spacers, OR the Chimera Engineering Aluminum Wheel Spacer Set (CH-1137).

Specs: Made in the USA!

• CNC Machined from T-6061 Aluminum
• 4x91mm Bolt Pattern (M10x1.25mm thread holes)
• 89mm Center Hub Bore
• Nachi Bearings (Made in Japan)
• Raw Machine Finish

Hub Content:

• Chimera Engineering Front Hub Monkey/Grom, (4 bolt rotor)
• Nachi Bearings are already pressed in
• 4x M8 x 16mm Stainless Steel Socket Head Cap Screws
