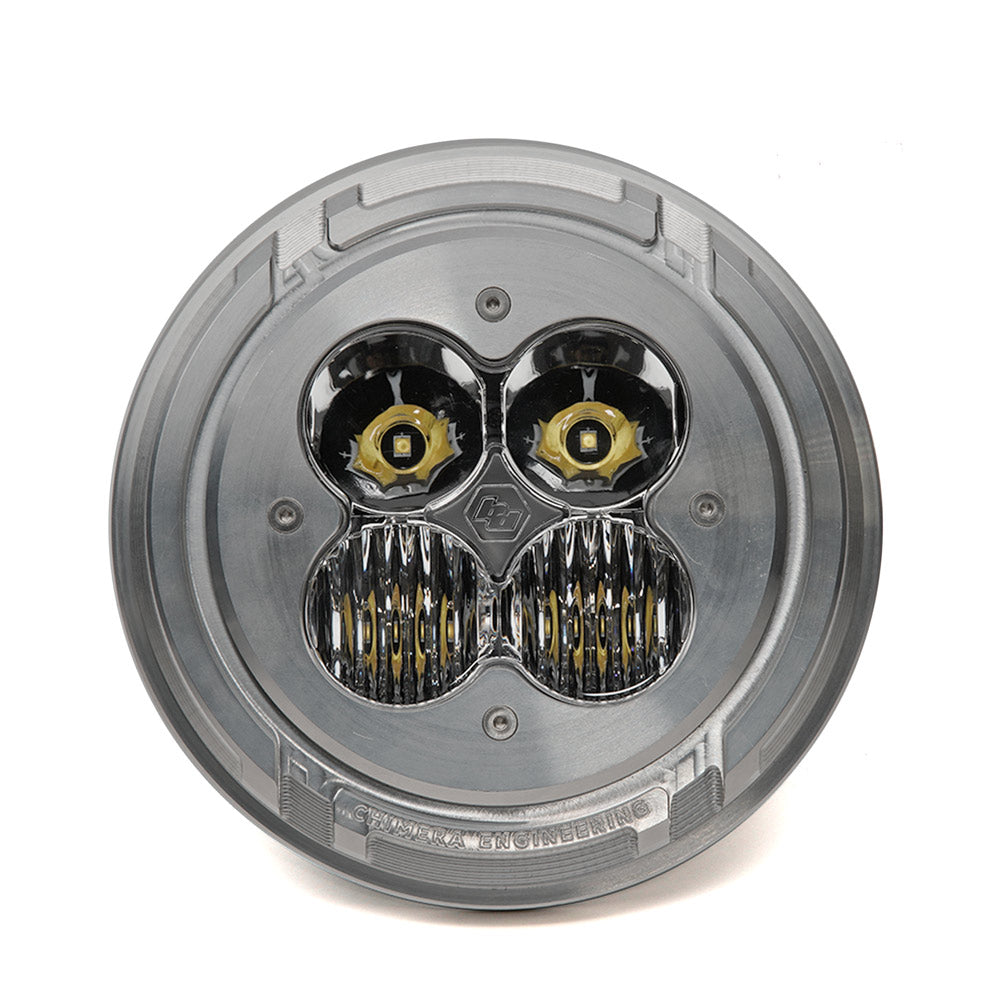

Chimera X Baja Designs Squadron Headlight for Onyx RCR 80V. This is a 100% Plug and Play Headlight upgrade using that Baja Designs Squadron light and the Chimera 5.75" adapter plate. This will mount perfectly into the factory Onyx RCR 80v headlight housing.
There are two ways to mount this kit!
- HOUSED: This kit can be mounted inside the factory RCR 80V headlight housing bucket, it will replace the factory headlight assembly.
- NAKED: This kit can mount "Naked" for a unique and more custom/naked look. It would allow the removal of the headlight bucket completely, which the headlight plate will mount directly onto the headlight stay bracket.
Squadron LIGHT OPTIONS / MODELS
- Squadron Sport = 30w / 3,162 Lumens
- Squadron Pro = 41w / 4,095 Lumens
- Squadron SAE = 29w / 2,420 Lumens / Designed, optimized, and approved for street use. Short cut off beam, only recommended for city riding.
KIT CONTENT:
- Choice of Baja Designs Squadron Sport, SAE, or Pro Light (select from Light Option)
- Chimera Engineering Billet Aluminum 5.75" Headlight Adapter
- Chimera Engineering Plug and Play High/ Low Connector
NOTE:
- The resistor inside on the harness will get quite hot. Place/position the harness so that it would get air circulation so that it would cool off the resistor.
- The high beam indicator light on the gauge cluster/dash will no longer work with this harness. The high/low beam switch will function as it should, but the high beam indicator light will stay on at all times.
