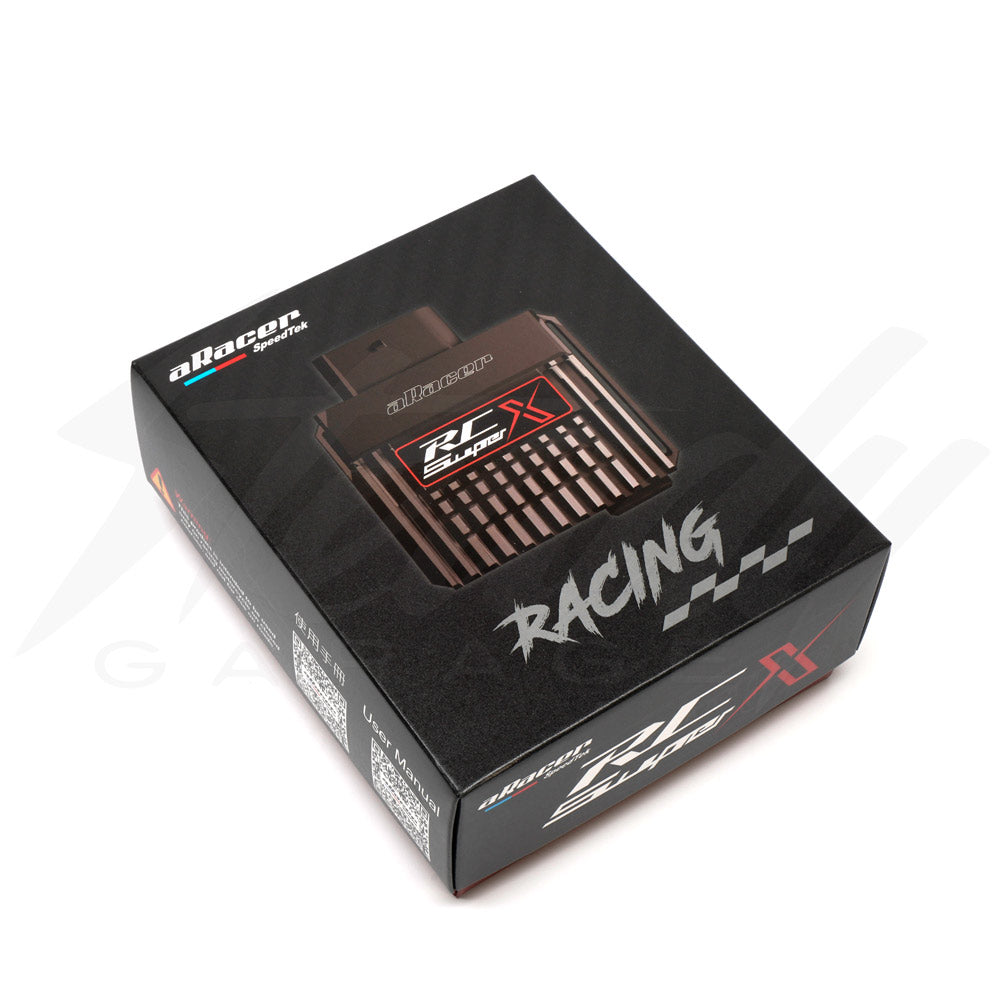

ARacer RC Super X Stage 3 Ultimate Engine Management System ECU - HONDA CRF125F
ARacer RC Super X Stage 3 Ultimate Engine Management System ECU - HONDA CRF125F
  • SKU: ASG-1111

ARacer RC Super X Stage 3 Ultimate Engine Management System ECU - HONDA CRF125F

$795.00
Shipping calculated at checkout.
FOR CLOSED COURSE COMPETITION USE ONLY. NOT INTENDED FOR STREET USE. THE MANUFACTURE, SALE, OFFER FOR SALE, OR INSTALLATION OF THIS PRODUCT MAY ALSO BE ILLEGAL NATIONWIDE UNDER THE FEDERAL CLEAN AIR ACT (42 U.S.C. § 7522(A)(3))

*You are required to fill out this form with your Full Name, Make, Model, and Year of your Vehicle before adding to cart.*

By Filling out this form, I acknowledge that this product will not be used on the public roads or land.

DESCRIPTION
  • NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES

ARacer RC Super X Stage 3 Ultimate Engine Management System ECU will completely replace the OEM ECU on the HONDA CRF125F! This is not a piggyback ECU, the RC Super X completely removes the OEM ECU! This will eliminate all of the issues that would occur with the OEM ECU, giving you full control of how the engine will run without any worries of random changes that typically occurs with a piggyback ECU. Adjustments could be made with a laptop. The RC Super X is 100% plug and play, no wiring needed!




ARacer RC Super X Stage 3 is a Complete engine management system that allows you to make all adjustments via a laptop. Pair this up with the correct fuel injector size and you could easily tune your engine to run.

Tuning could be done on a dyno (highly recommended) or safely on a backroad/street using a wideband o2 gauge and sensor with the autotune function.

Optional DG1 and AF2 combo option is available and recommended to be used with the Super X to monitor A/F ratio.

  • New six-core MCU & dual MCU block division is 21% faster
  • CFD heat dissipation analysis & Layout design, heat dissipation increased to 58%
  • 360-degree WiFi antenna design, signal strong increase to 20%
  • CNC shell, anodized treatment & diamond cut heat sink design, heat dissipation increased to 66%
  • Fly Recorder built-in memory, capacity increased to 33%

RC2 Super X ECU
  1. Fuel and Injection phase adjustable
  2. Ignition timing and dwell time adjustable
  3. Manifold Air Pressure base for inlet air amount calculation
  4. Released engine speed limited
  5. Environment temp and Baro compensation available
  6. Free MAP download for various vehicle model (Honda, Yamaha, Suzuki, Kawasaki, Kymco, SYM…)
  7. Increase almost 10% above power after calibration (depend on engine model)
  8. Easy plugin (remove stock ECU and install Super X ECU without any harness modified)
  9. Same connector as stock ECU
  10. Super Super X ECU meet IP67 specs
  11. Support Auto-Tune with aRacer AF2 wideband sensor module
  12. Race & ECOMAP real-time switch with iMode
  13. Launch mode for racing start
  14. Valet mode for anti-thief or running usage
Optional items are available! Please see related items below!

NOTE : Different countries might have a different ECU. These are for USA models only. If your Aracer ECU looks like the one in the product photo, it may plug into the harness, however the functions might be different. If you need a re-flash to your ECU and you're located in another country outside of the USA, please contact us.

Please note that ECU and ECM units are not returnable or exchangeable. Any issues must be addressed through the manufacturer's warranty.


**NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES**
