CHIMERA ENGINEERING FRONT ABS SENSOR ADAPTER KIT - HONDA REBEL 300, REBEL 500 (ALL YEARS)

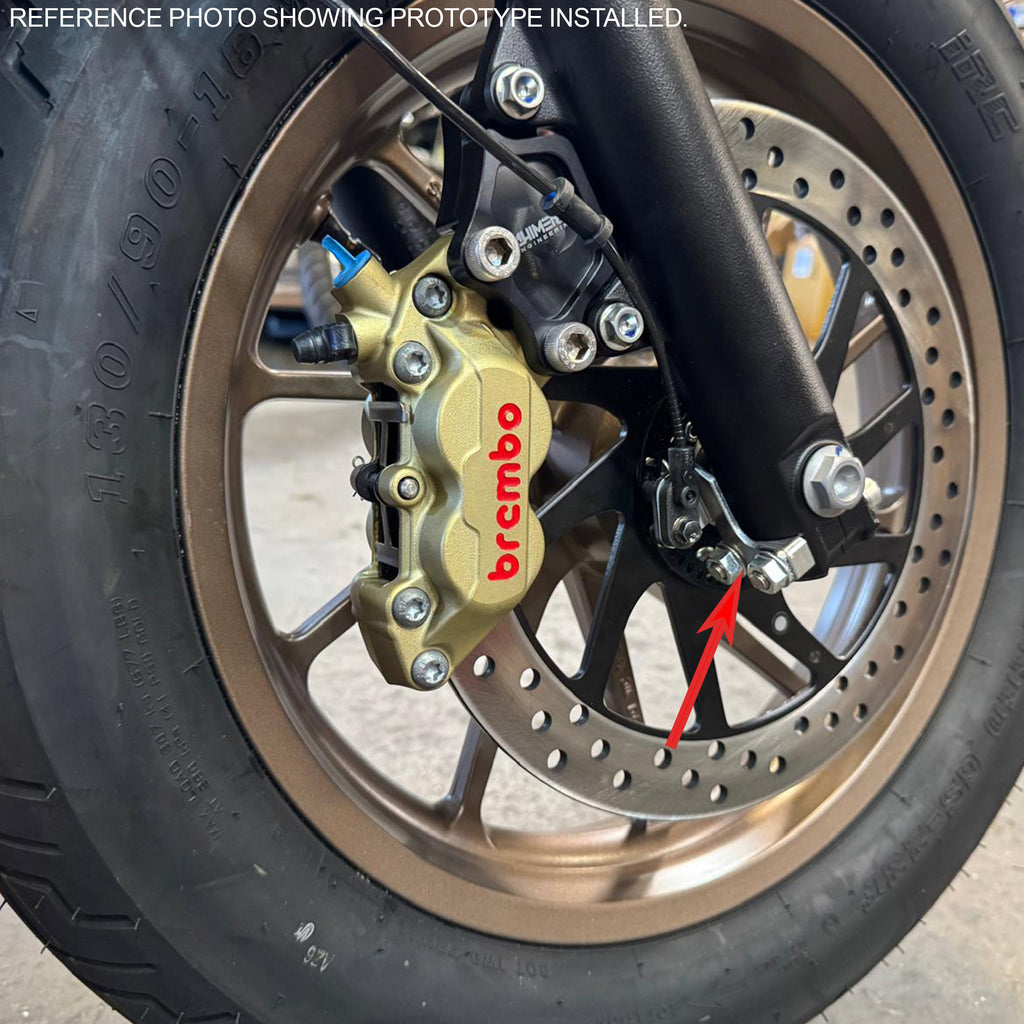

Upgrading the front brake caliper on the Honda Rebel 300 and Rebel 500 that's equipped with ABS shouldn't be a hard task, thanks to Chimera Engineering's ABS sensor adapter kit, which would allow you to relocate the ABS sensor to a different position, which will give you the ability to upgrade the brake caliper and rotors without any issues. Direct bolt-on kit that could easily be reverted back to the OEM set up if needed.

CONTENT:

• Chimera Engineering ABS Sensor Relocation Bracket
• Chimera Engineering Machined Leveler Block
• Mounting Hardware

Made in the U.S.A!

FITMENT:

• 2017-2026: Honda Rebel 300 ABS (CMX300)
• 2017-2026: Honda Rebel 500 ABS (CMX500)

May fit 2017-2026 Honda Rebel 250 (CMX250) which are not available in the USA. Please check and reference the photos to make sure that the forks on the 250's are the same as the 300 and 500 in the U.S. models.

Reusing 1 of the OEM M6 bolt is required to secure the ABS sensor to the Chimera bracket.

AFTERMARKET ROTOR AND RIM NOTE: ABS sensor positioning is based on the OEM brake rotor and rim. If you have aftermarket rim and/or brake rotor, double check the distance between the ABS ring and the ABS sensor. If the distance / gap is too large, the ABS sensor may not pick up the ABS ring pulse.
