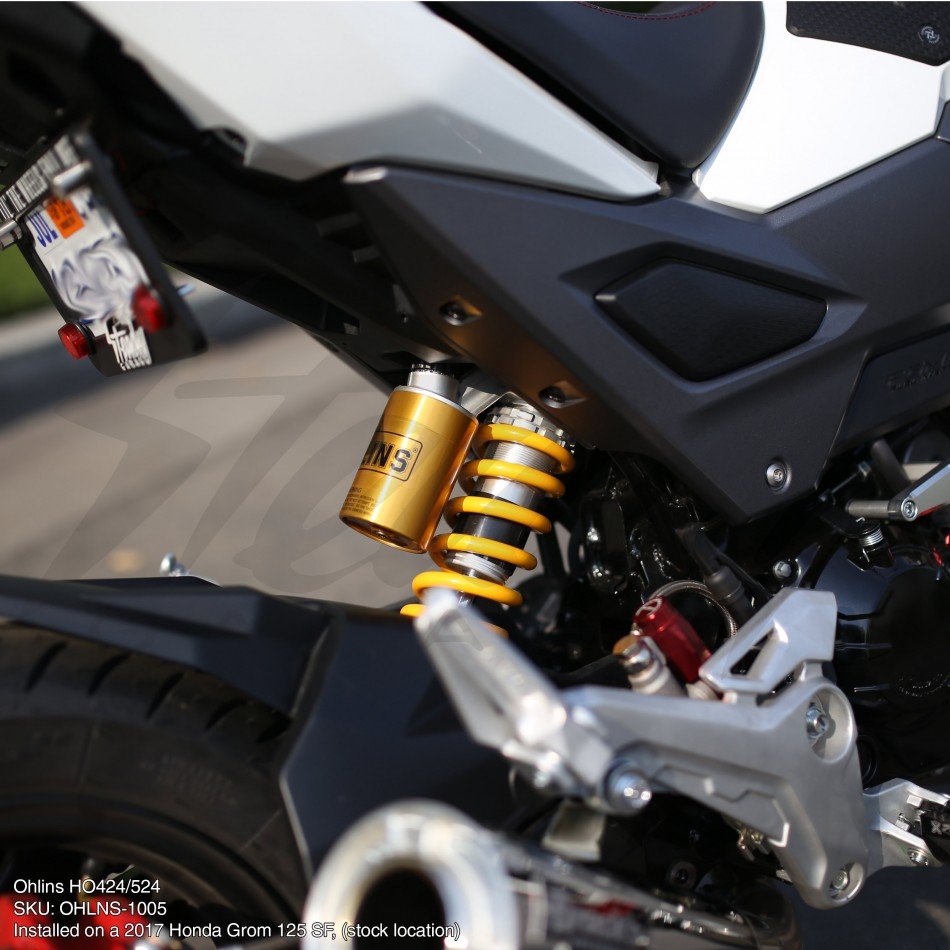

Ohlins STX S36 Adjustable Piggyback Rear Shock Honda Grom 125

Ohlins STX S36 adjustable piggyback mini shock for 2014-2015 Honda Grom 125. It will also fit 2017-2023 with some trimming to the lower plastic around the shock.  Adjustable shock, from spring pre-load to dampening! This allow riders to adjust the spring rate and shock performance according to their weight and riding preferences.

Available in 2 Rates

• HO424 for Honda Grom rider under 80kg / 176lbs
• HO524 for Honda Grom rider above 80kg / 176lbs

Ohlins high performance coilover rear shock for Honda Grom 125 allows you to adjust the spring pre-load to increase the stiffness of the rear suspension, and you can adjust compression or rebound on the fly. Highly recommended for all type of riders/racers and for those who are going to extend their Grom 125 wheel base.

Fits all Year Honda Grom/MSX 125. Newer Model will require slight modifcation to plastics or mounting shock upside down.

Shock specs:

• Adjustable Rebound and Compression damping
• Monotube Shock with External Piggyback Reservoir
• High Pressure Nitrogen Gas Charged
• STX Single Tube design
• 36mm Piston Diameter
• Adjustable Preload w/ tool
• For Honda Grom rider under 80kg / 176lbs, **If over 80kg / 176lbs see HO 524
• Top Level Comfort, Rideability and Performance
• Hard Anodized - Precision CNC-Machined Components
• Low-friction Shaft / Seal Head design
• Fully Serviceable and Repairable
